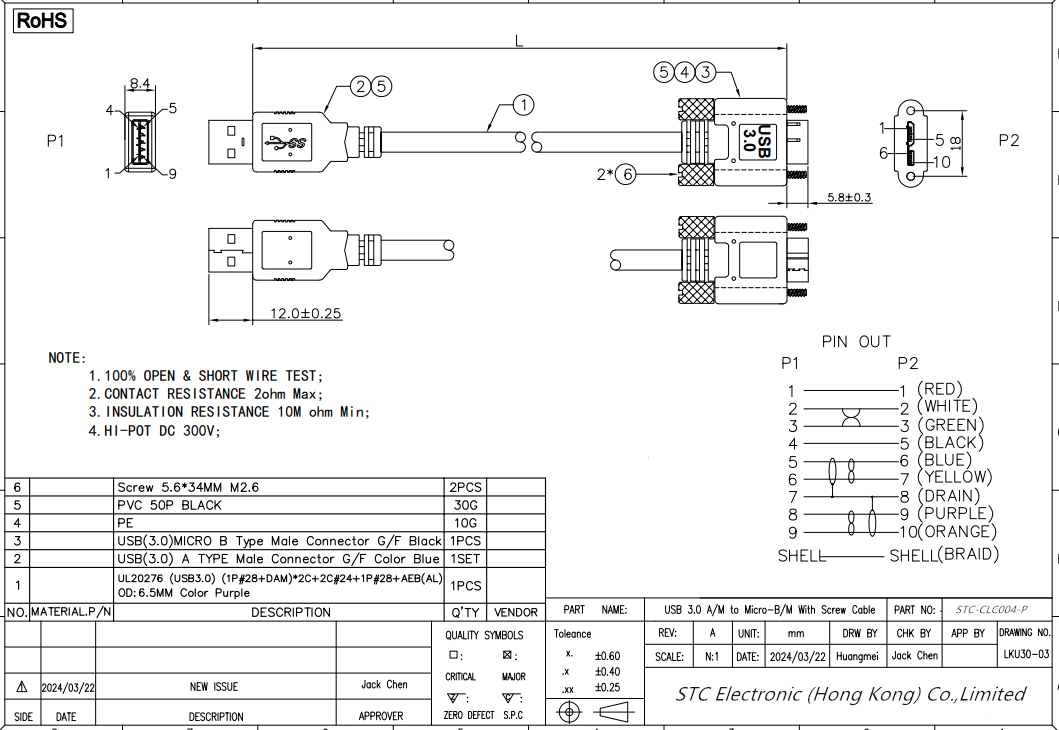

USB 3.0 Micro-B Industrial Camera Link Cable
Applications:
- High Flexible USB 3.0 Micro-B Industrial Camera Data Cable.
- Connector A: 1*USB 3.0 Type A Male Connector.
- Connector B: 1*USB 3.0 Type Micro B Male Connector
- Cable length: 1m, 1.5m, 2m, 2.5m, 3m, 4.5m（Customizable）
- Application: Industrial Camera
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-CLC004-PS
Part number STC-CLC004-PD Part number STC-CLC004-PU Part number STC-CLC004-PL Warranty 3 Years |
| Hardware |
| Cable Jacket Type PVC - Polyvinyl Chloride |
| Performance |
| Type and Rate USB 3.0 |
| Connector(s) |
| Connector A 1 - USB 3.0 A male with PVC Molding and screws
Connector B 1 - USB 3.0 Micro B male with PVC Molding and screws |
| Physical Characteristics |
| Cable Length 1m, 1.5m, 2.5m, 3m, 3.5m, 4.5m (Customizable)
Color Purple Connector Style Straight Product Weight 0.175 kg Wire Gauge USB 3.0 (28AWG*1P+AL) x 2P+ 28AWG*1P+24AWG*2C +AEB OD=6.5mm Color: Purple |
| Packaging Information |
| Package Quantity 1 Shipping (Package)
Weight 0.18 kg |
| What's in the Box |
| High Flexible USB 3.0 Micro B Industrial Camera Link Cable, USB 3.0 Micro Cable, 0.6m USB 3.0 Male to Micro B Male Cable Industrial Camera Wire with Locking Screws. |
| Overview |
|
USB 3.0 Industrial Camera Link Cable with Double Screw Lock Shielded Cable for Industrial Camera.
USB 3.0 cables deliver fast performance coupled with a rugged design. Special continuous motion TPE cable allows the assembly to be flexed up to one million times without degradation of performance. These cables are made for applications where ordinary USB cables would fail. Additionally, these assemblies use UL-recognized jackets and have 22AWG power conductors for maximum power delivery. These cables are excellent for automation and factory use.
FeaturesHigh flex and continuous motion rated for a minimum of 1 million flex cycles Assembly built to USB 3.0 standards and speeds Micro B connector has built-in Machine Vision thumbscrews that can be pushed back if not required UL Style 21445, VW-1 violet TPE jacket 22AWG power conductors for maximum current
ApplicationIndustrial or Factory Automation Process engineering Machine Vision applications Data acquisition or PLC communications Test and measurement
|
