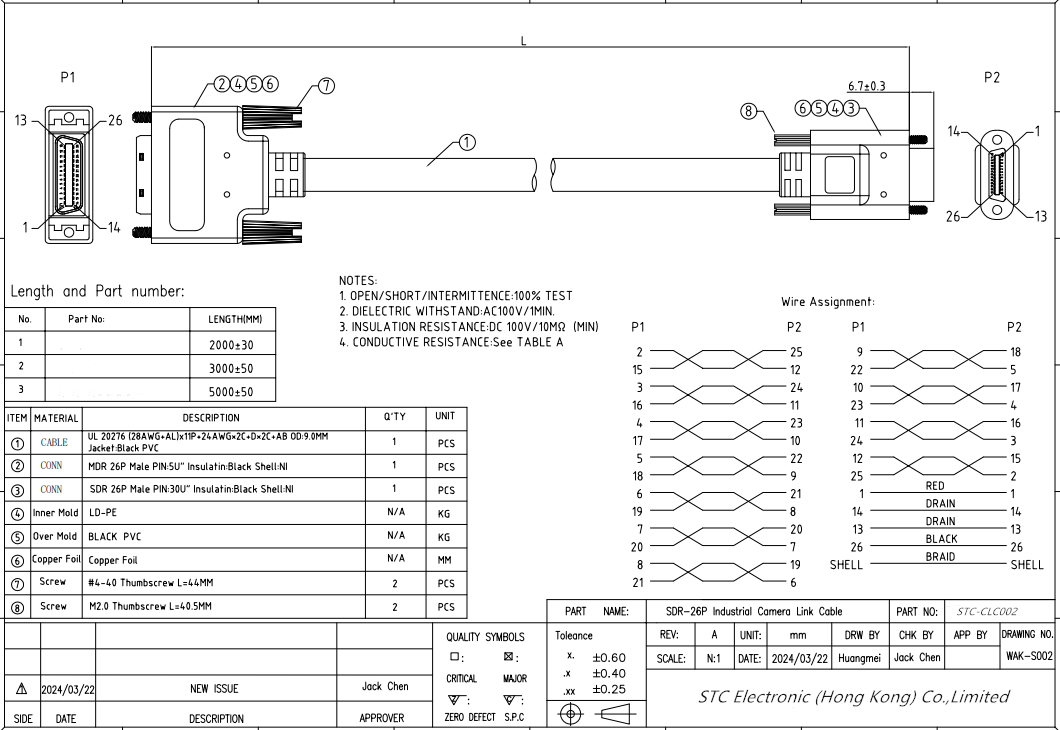

MDR 26P to SDR 26Pin Industrial Camera Link Cable
Applications:
- MDR 26 Pin to SDR 26 Pin Camera Link Cable for Industrial Cameras
- Connector A: 1*SCSI MDR-26Pin Pitch=1.27mm Solder Type Connector.
- Connector B: 1*SCSI SDR-26Pin Pitch=0.8mm Solder Type Connector
- Cable length: 0.5m, 1.0m, 2m, 3m, 5m （Customizable）
- Application: Industrial Camera
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-CLC002
Warranty 3 Years |
| Hardware |
| Cable Jacket Type PVC - Polyvinyl Chloride |
| Performance |
| Type and Rate SCSI MDR/SDR |
| Connector(s) |
| Connector A 1 - MDR 26 Pin male with PVC Molding and screws
Connector B 1 - SDR 26 Pin male with PVC Molding and screws |
| Physical Characteristics |
| Cable Length 0.5m, 1.0m, 2m, 3m, 5m (Customizable)
Color Black/Gray Connector Style Straight Product Weight 0.175 kg Wire Gauge UL20276 (28AWG+AL)*11P +24AWG*2C+D*2C+AEB PVC Jacket OD=9.0mm Color: Black |
| Packaging Information |
| Package Quantity 1 Shipping (Package)
Weight 0.18 kg |
| What's in the Box |
| MDR 26P to SDR 26Pin Industrial Camera Link Cable, Industrial Camera Machine Vision Cable by SDR 26Pin to MDR 26Pin Camera Link Cable. |
| Overview |
| Product Description
SDR 26 Pin to MDR 26 Pin Power Supply, High Flexible Towline with Lock Data Cable Camera Link Industrial Camera Cable.
Camera Link MDR 26 to SDR 26 cable assembly is available and in stock for your Machine Vision applications and needs. Camera Link is a robust communications link using a dedicated cable connection and hardware specification to standardize the connection between cameras and frame grabbers. It defines a complete interface that includes provisions for data transfer, camera timing, serial communications, and real-time signaling to the camera. It is capable of high-speed, fast transfer of large files with no latency issues and is the only real-time Machine Vision Protocol.
High bandwidth parallel communication. Camera Link is a well-established and proven industry standard, and since all Camera Link-compliant products are interoperable, users have the flexibility to choose the best product for their needs without worrying about compatibility between different manufacturers. Camera Link has GenICam support for plug-and-play interoperability.
Over-molded MDR26 (mini delta ribbon 26 pin) to SDR26 (shrunk delta ribbon 26 pin) connectors are robust and durable with standard locking screws to prevent accidental disconnects on your critical applications. The assembly is capable of PoCL (Power over Camera Link), which allows the camera to be powered by the frame grabber through the Camera Link cable, eliminating the need for a separate power cable to save space, time, and cost in your installations. Camera Link products such as CLCA02-5M from L-com are in stock and ship the same day. MDR26 to MDR26, SDR26 to SDR26, and MDR26 to SDR26 connector combinations are all available to meet whatever connector combination your frame grabber and camera may have.
FeaturesCamera Link MDR to MDR cable assembly MDR26 (Mini Delta Ribbon 26 pin) male plug to MDR26 (Mini Delta Ribbon 26 pin) male plug Capable of PoCL (Power over Camera Link) use Ivory colored UL 20276 PVC jacket The only real-time Machine Vision protocol to assure fast transfer of large files with no latency issues ApplicationMachine Vision Systems, including Frame Grabbers and Cameras Quality Control and Automatic Inspection Process Control Systems Medical Devices and Imaging Robot Guidance and Robotics
|
