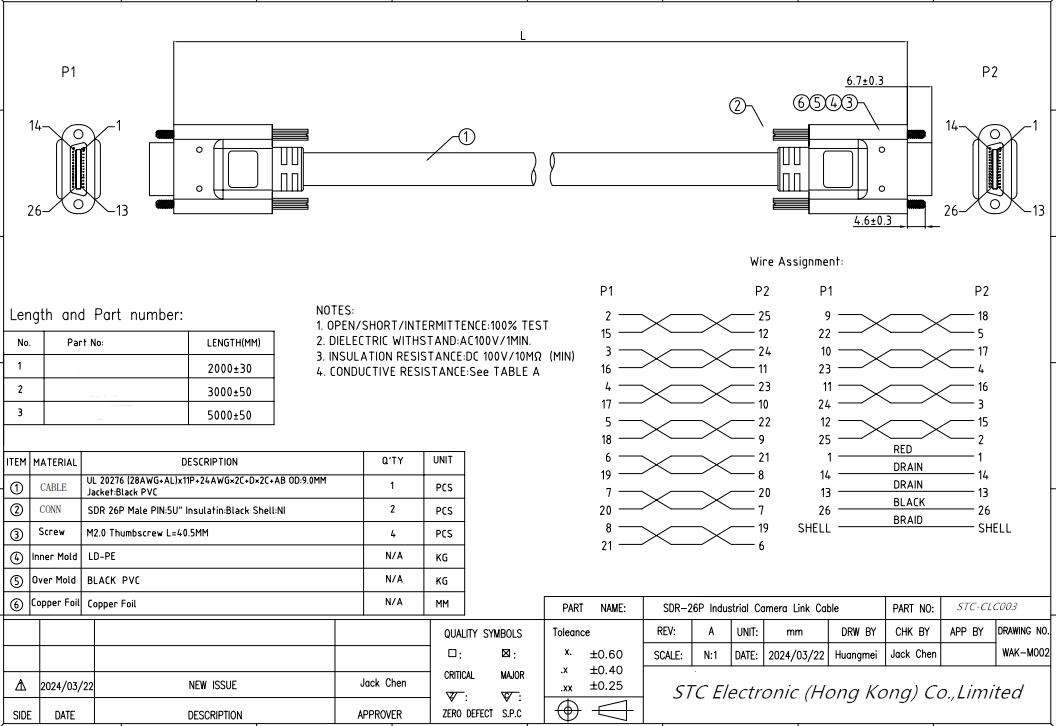

SDR 26P to SDR 26Pin Industrial Camera Link Cable
Applications:
- SDR 26 Pin to SDR 26 Pin Camera Link Cable for Industrial Cameras.
- Connector A: 1*SCSI SDR-26Pin Pitch=0.8mm Solder Type Connector.
- Connector B: 1*SCSI SDR-26Pin Pitch=0.8mm Solder Type Connector
- Cable length: 0.5m, 1.0m, 2m, 3m, 5m （Customizable）
- Application: Industrial Camera
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-CLC003
Warranty 3 Years |
| Hardware |
| Cable Jacket Type PVC - Polyvinyl Chloride |
| Performance |
| Type and Rate SCSI SDR |
| Connector(s) |
| Connector A 1 - SDR 26 Pin male with PVC Molding and screws
Connector B 1 - SDR 26 Pin male with PVC Molding and screws |
| Physical Characteristics |
| Cable Length 0.5m, 1.0m, 2m, 3m, 5m (Customizable)
Color Black/Gray Connector Style Straight Product Weight 0.175 kg Wire Gauge UL20276 (28AWG+AL)*11P +24AWG*2C+D*2C+AEB PVC Jacket OD=9.0mm Color: Black |
| Packaging Information |
| Package Quantity 1 Shipping (Package)
Weight 0.18 kg |
| What's in the Box |
| SDR 26P to SDR 26Pin Industrial Camera Link Cable, Industrial Camera Machine Vision Cable by SDR 26Pin to SDR 26Pin Camera Link Cable. |
| Overview |
| Product Description
Camera Link SDR To SDR Cable For Machine Vision, Camera Link Machine Vision Cable Assembly, SDR26 male plug to SDR26 male plug. Industrial cameras with Camera Link interface Camera Link was developed for high-speed industrial camera applications. In the late 20 century, the National Semiconductor Laboratory developed the Channel Link (C-Link for short) chipset. The interface of the chip increases the transmission speed from 250Mbit/s to 6.4Gbit/s while maintaining the original cost. Promoted by the American Automation Industry Association (AIA) in 2000, Channel Link has gradually become the industry standard for scientific and industrial machine vision products, including cameras, cables, and frame grabbers. It has been called Camera Link since then. Camera Link is the 4-channel chipset Channel Link version, using a transmission speed of 2.38Gbit/s. If three more chipsets are placed in parallel, the maximum data transmission speed can exceed 7Gbit/s. With such fast data interfaces, industrial cameras are driven to higher resolutions and higher frame rates. The Camera Link interface has a big size MDR and a small size SRD (SDR also called HDR-mini). Both pin definitions are the same, just the size is different. SDR was originally developed for use in industrial automation.
FeaturesCamera Link MDR to MDR cable assembly MDR26 (Mini Delta Ribbon 26 pin) male plug to MDR26 (Mini Delta Ribbon 26 pin) male plug Capable of PoCL (Power over Camera Link) use Ivory colored UL 20276 PVC jacket The only real-time Machine Vision protocol to assure fast transfer of large files with no latency issues ApplicationMachine Vision Systems, including Frame Grabbers and Cameras Quality Control and Automatic Inspection Process Control Systems Medical Devices and Imaging Robot Guidance and Robotics
|
