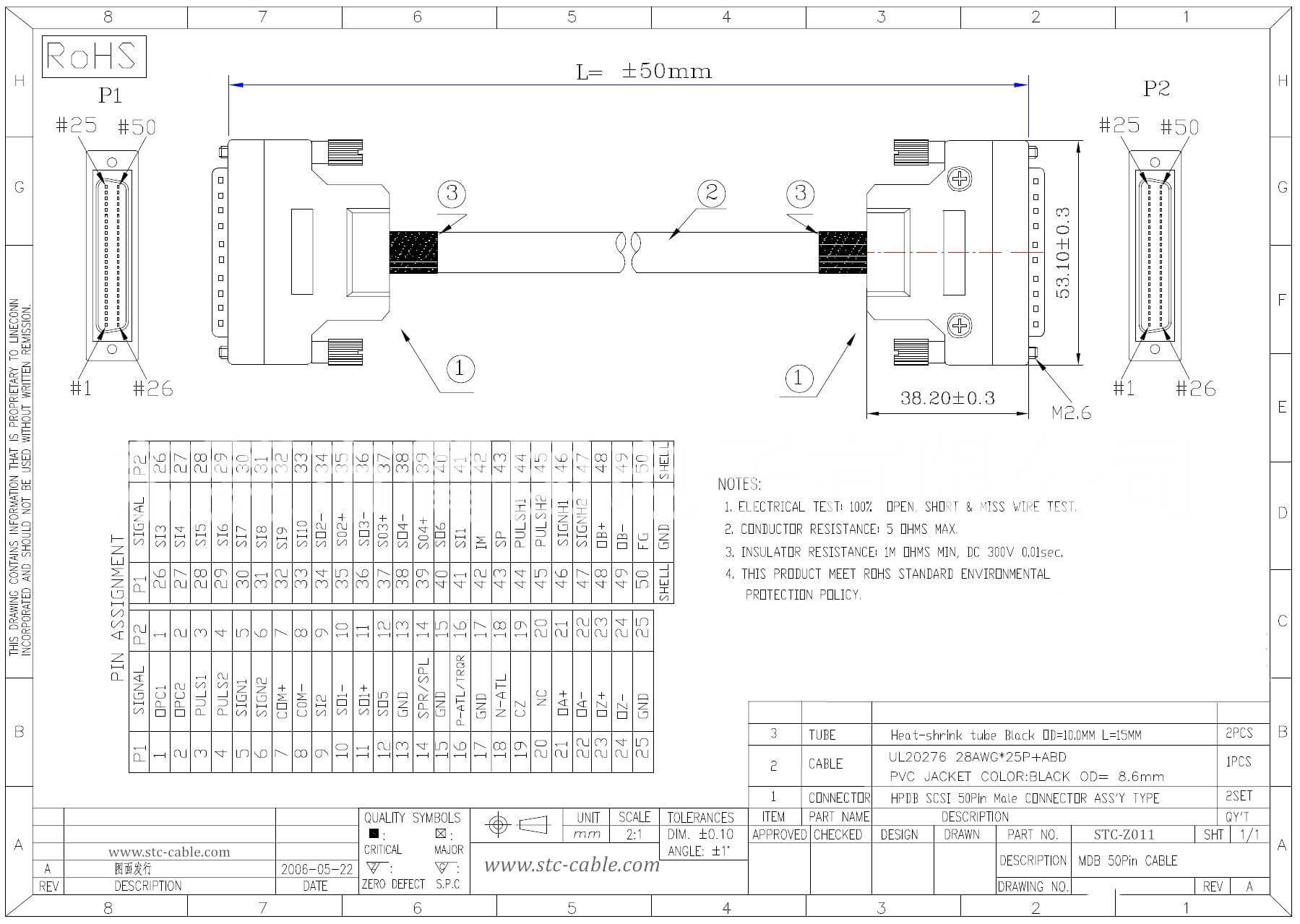

HPDB50M TO HPDB50M SCSI CABLE WITH SCREWS

1) Wired straight through for extending serial devices/peripherals.

2) 360-degree fully shielded for protection against EMI/RFI.

3) Gold-plated contacts provide reliable connections with repeated mating cycles.

4) We could according to the customers' design specs make wire harnesses.

DESIGNED TO CONNECT SCSI-2 PERIPHERALS SUCH AS PRINTERS, SCANNERS, OR OTHER EXTERNAL STORAGE DEVICES WITH HPDB50 PORT.

The HPDB 50-pin connector is used on peripheral devices such as scanners and external storage devices but is also found on the SCSI 2 host cards. Use these fast-performing SCSI 2 cables to connect your peripherals either to a SCSI 2 host controller or to each other.

Advantage

1> High-quality pure copper twisted pair shielded cable.

2> Three layers of shielding anti-interference

3> Imported connectors are more reliable.

Application

This product is mainly used for signal transmission such as TVs and game consoles.

General Description

Use these cables to interconnect equipment that utilizes 50-pin

HP DSUB (Half-Pitch DSUB) connectors. These attractive cables feature 50-pin Male connectors on each end, over-molded ends with strain reliefs, twisted pair wiring, and a shielded cable jacket. Latches secure the cable to the mating connector. Three cable lengths (1/3/5m) are available.

Note:

The connector used on this product goes by several different names, including Half-Pitch DSUB, HPDSUB, HPDB50, Micro DB50, .050 DSUB, Amplimite .050 Series, 0.050 D-Type, HD50, SCSI, and SCSI II. If you are uncertain which connector you have, please contact us.
