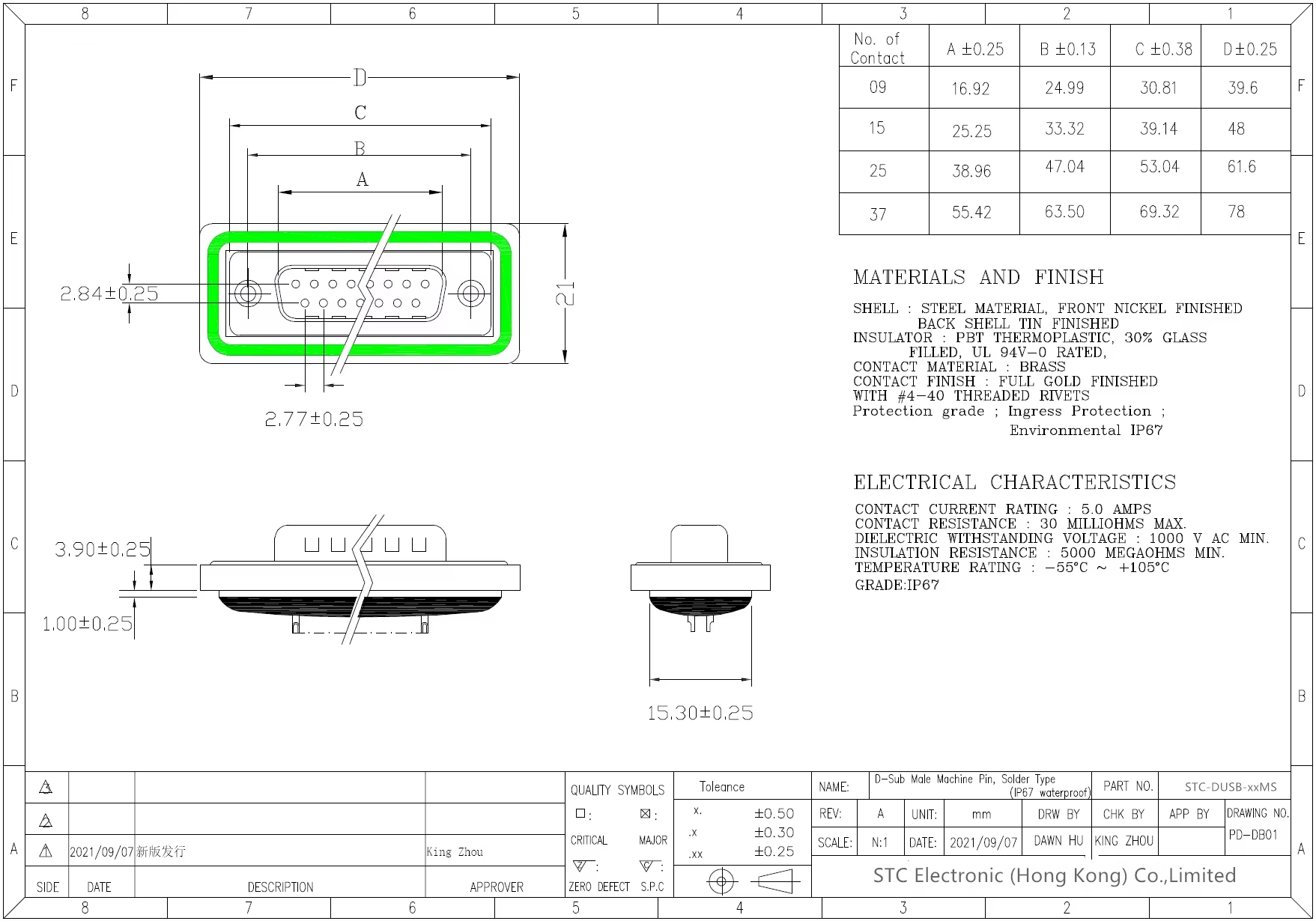

D-SUB Waterproof Male Connector
Applications:
- D-SUB DB 9/15/25/37 44Pin Male Waterproof Connector.
- 2-row Solder Type Connector.
- IP67 rating provides protection under harsh conditions.
- Dielectric Withstanding Voltage: 1000V AC.
- Insulation Resistance: 5000M /Min.
- Contact Resistance: 30m /Max.
- Operaion Temperature : -55°C ~ +105°C
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-DUSB-xxMS
Warranty 3-year |
| Hardware |
| Connector Type Solder
Connector Plating Gold |
| Performance |
| Power Delivery 50V/5A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy,Contact area plated 1u"
Shell SPCC,Plated Ni Housing PBT +30% G/F, Color: Black / Blue HOOD NA NUT Steel (If have) |
| Electrical Characteristics |
| a) Contact Current Rating: 5 Amp
b) Dielectric Withstanding Voltage: 1000V AC c) Insulation Resistance: 1000MΩ/Min d) Contact Resistance: 30mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |
High quality D-SUB 9Pin 15Pin 25Pin 37Pin 44Pin male Waterproof Connector Solder Type IP67 Waterproof DB9 connector for Panel Mount.
|
| Overview |
|
The STC D-SUB 9Pin 15Pin 25Pin 37Pin 44Pin male Waterproof Connector of IP67 rated waterproof D-Subminiature connectors are available in both standard and high density packages. Plug & receptacles in 9, 15, 25, 26 and 44 pin versions are available as well as high power combo configurations.
Harsh outdoor or indoor environments can destroy electronic equipment. Standard D-sub connectors are not intended to withstand contaminants such as water and dust. This waterproof solder cup DB9 female connectors will accommodate wire ranges from 30 - 20 AWG. Construction features gold plated brass contacts, nickel plated steel shells, and a silicone insulating ring. Maximum recommended panel thickness is 0.078" Features
