HD-SUB Male Connector 180 Degree for PCB
Applications:
- HD-SUB DB 15/26/44/62Pin Male Connector 180 degree for PCB.
- 3-row Straight and Solder Type Connector.
- Designed To Be Mounted On Printed Circuit Boards.
- All 15/26/44/62 Pins And Two Mounting Tabs Extend Through The Circuit Board
- Dielectric Withstanding Voltage: 1000V AC.
- Insulation Resistance: 5000M /Min.
- Contact Resistance: 30m /Max.
- Operaion Temperature : -55°C ~ +105°C
Product Detail
Product Tags

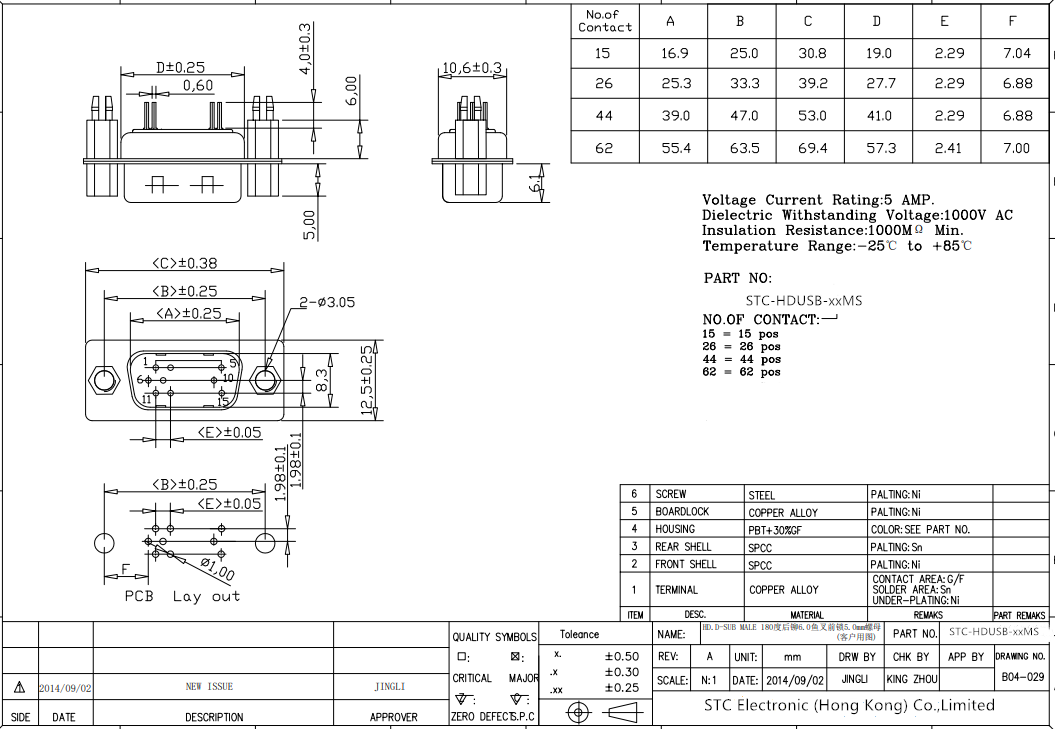

| Technical Specifications |
| Warranty Information |
| Part number STC-HDUSB-xxMS
Warranty 3-year |
| Hardware |
| Connector Type Male/3-Row/180 Degree/Solder
Connector Plating Gold |
| Performance |
| Power Delivery 50V/5A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy,Contact area plated 1u"
Shell SPCC,Plated Ni Housing PBT +30% G/F, Color: Black / Blue HOOD NA NUT Steel (If have) |
| Electrical Characteristics |
| a) Contact Current Rating: 5 Amp
b) Dielectric Withstanding Voltage: 1000V AC c) Insulation Resistance: 1000MΩ/Min d) Contact Resistance: 30mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |
HD-SUB 15Pin Female VGA Connector HDB 15Pin for PCB 180 Degree Type with 4-40#nut D-sub 15pin Connector for PCB, HDB15pin 26pin 44pin 62pin male Connector 180 Degree for PCB.
|
| Overview |
|
HD-SUB HDB9 15Pin 26Pin 44Pin 62Pin male DIP PCB Straight Solder Connector Socket Adapter 3 Rows. Pcb Mount 180 degree Connector HDb-15 HDb-26 HDb-44 HDb-62 Male, HD-Sub Connector In Assembly Of A Working Connector For Pc Board, The Connector Is Essential To Provide The Actual Connection Interface Between Two Devices. Such An Important Function Relies On Durable And Reliable Materials, Manufacturing, And Design. These Connectors Are Made Of The Highest Quality Materials To Ensure Maximum Operational Efficiency During High Intensity And Mission Critical Applications. Solder Type Connection Between The Cable And Connector Is Very Easy To Connect And Creates Permanent And Extremely Durable Connections From Cable To Connector.
These HDB9 15Pin 26Pin 44Pin 62Pin straight Connectors Are Designed To Be Mounted On Printed Circuit Boards. All the Pins And Two Mounting Tabs Extend Through The Circuit Board, Providing A Convenient And Sturdy Connection. The straight angle Connector Is A Space Efficient And Cable Strain Relieving Solution For Cabling Production. Made Of The Highest Quality Metals And Synthetic Materials, This Connector Performs Excellently In Mission Critical And Data Intensive Operations, Maintains Structural Integrity Under Physical Stress, And Gives Reliable Long-Lasting Versatility And Functionality To Your High Density Cables.
|
