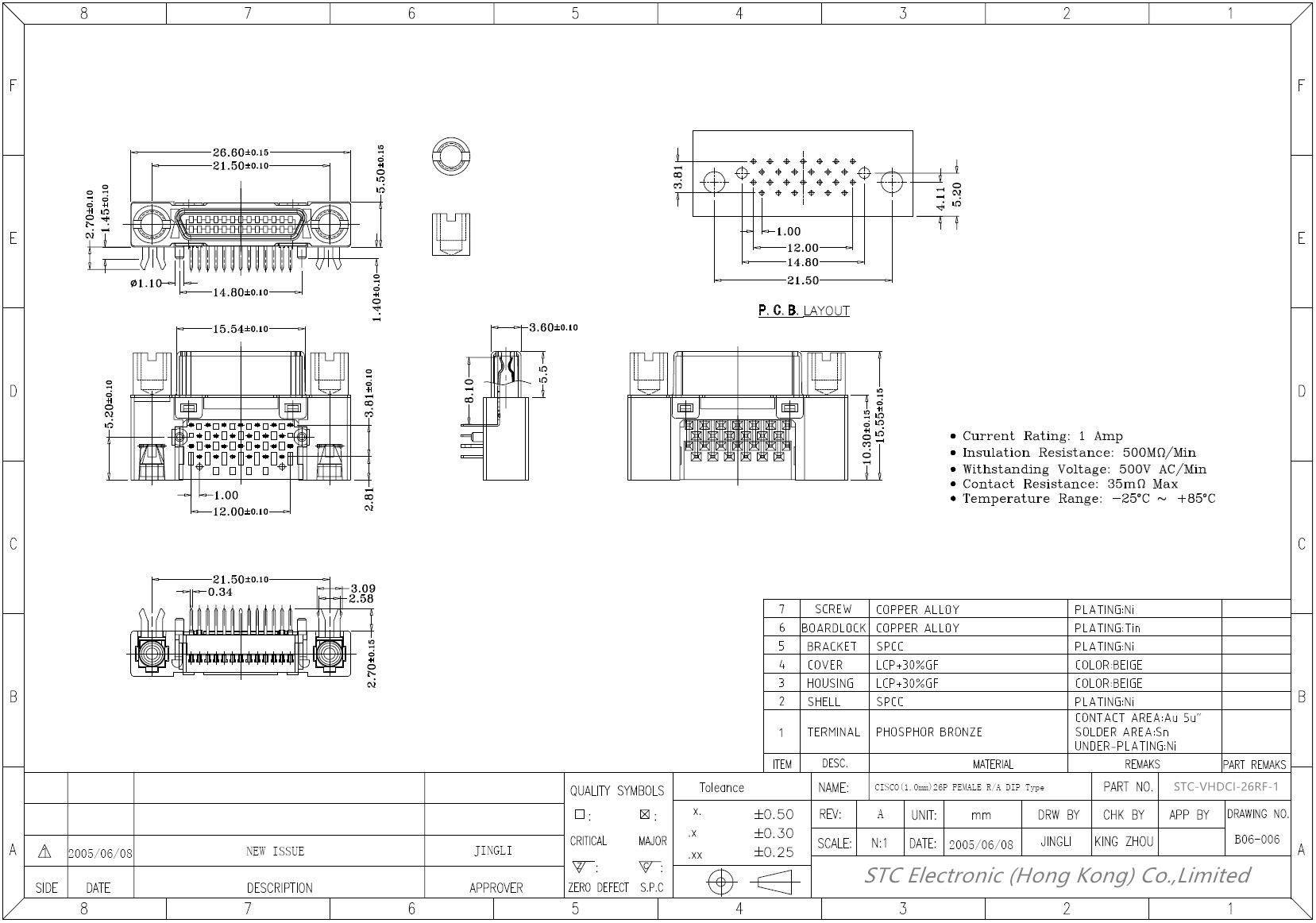

VHDCI CISCO 26 Pin Female Right Angle DIP connector
Applications:
- CISCO 26-Pin Female VHDCI Right-Angle DIP Connector.
- DIP PCB Termination.
- 30VDC Voltage Rating.
- 2A Current Rating.
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-VHDCI-26RF-1
Warranty 3-year |
| Hardware |
| Connector Type DIP
Connector Plating Gold |
| Performance |
| Power Delivery 30V/2A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy, Contact area plated 1u"
Shell SPCC, Plated Ni Housing PBT +30% G/F Black Cover LCP + 30% G/F NUT Copper Color Black |
| Electrical Characteristics |
| a) Contact Current Rating: 0.3 Amp
b) Dielectric Withstanding Voltage:500V AC c) Insulation Resistance: 500MΩ/Min d) Contact Resistance: 35mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |
VHDCI CISCO 26 Pin Female Connector pitch=1.0mm Right Angle DIP Type V26 Connector.
|
| Overview |
VHDCI CISCO 26 Pin female DIP Type Connector With Metal Hood Pitch=1.0mm.
|
