Warranty                                                                       3-year

Connector Plating                                                         Gold

Shell                                                                              SPCC, Plated Ni

Housing                                                                         PBT +30% G/F

Cover                                                                             LCP + 30% G/F

HOOD                                                                            Zinc Metal

Color                                                                              Black

b)  Dielectric WithstandingVoltage:500V AC

c)  Insulation Resistance: 500MΩ/Min

d)  Contact Resistance: 35mΩ/Max

e)  Operaion Temperature: -20℃～+85℃

VHDCI 28Pin Male connector pitch=0.8mm Solder Type Ultra Thin VHDCI 28 Pin male connector for cable.

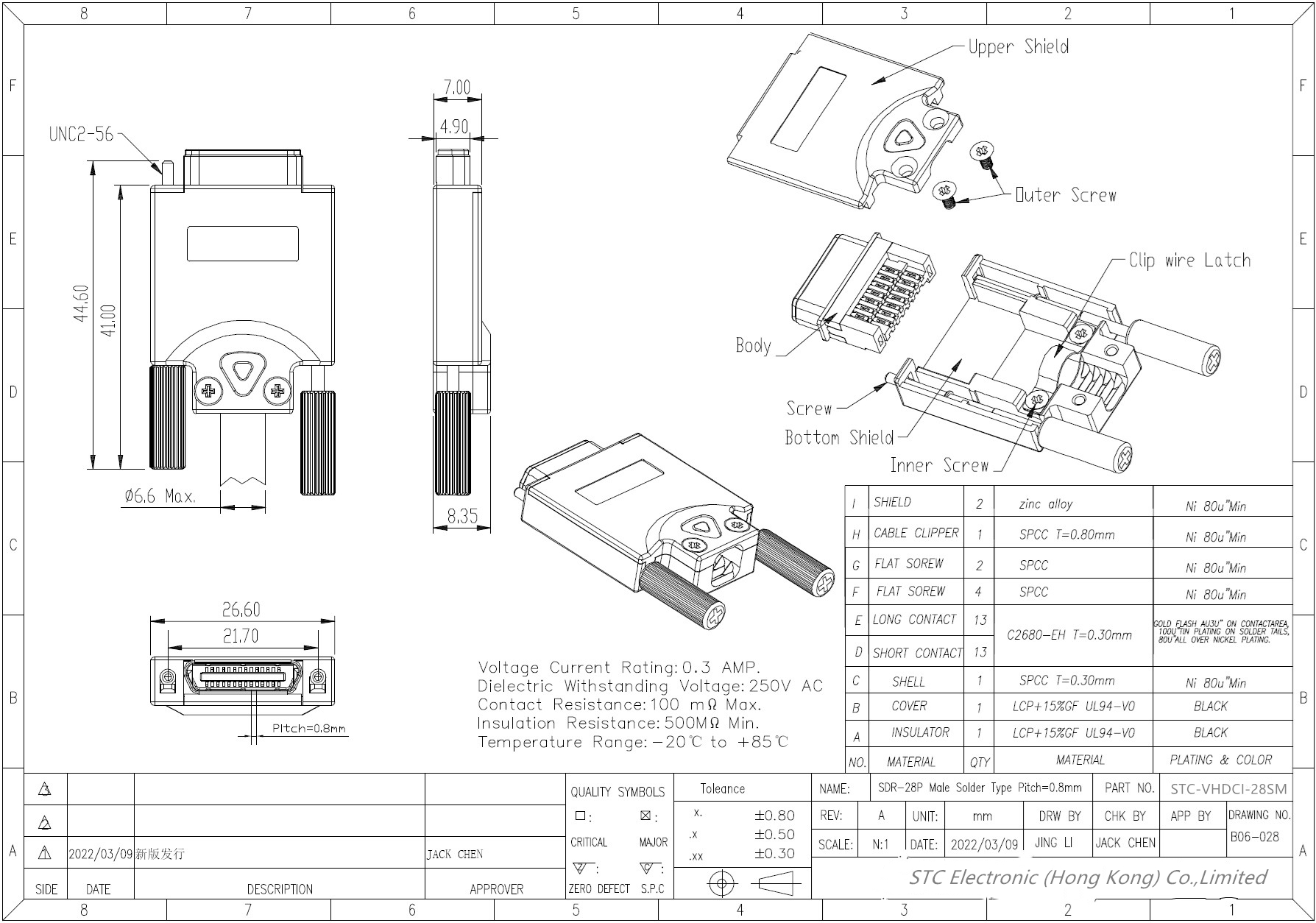

VHDCI 28 Pin Male Connector Pitch=0.8mm With Metal Hoodector.

This slimline version of the VHDCI connector is designed to allow users to directly terminate a cable with soldered connections to the 28-Way VHDCI connector. It is difficult to terminate the cable to the 28-pin VHDCI because of the high density and fine pitch. STC Interfaces recommends using purchased cable assemblies for applications where most or all contacts are in use.

Applications

1. Available in 3 industry sizes/positions (9, 15, 25,37,50).
2. Available in die-cast for over 70 dB shielding.
3. Easy assembly reduces manufacturing costs.
4. Non-conductive grommet/strain relief supplied to enhance shielding and provide proper strain relief.

Automotive Diagnostics Telecommunications, Data, Consumer, Industrial & Instrumentation, Military And Medical Or More
