SCSI 37 Pin Male Solder connector for cable
Applications:
- DH series DH40-37S male pitch=1.0mm 37 Pin male connector for cable.
- Solder Cable Termination.
- 30VDC Voltage Rating.
- 2A Current Rating.
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-DH40-37SM
Warranty 3-year |
| Hardware |
| Connector Type Solder
Connector Plating Gold |
| Performance |
| Power Delivery 30V/2A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy, Contact area plated 1u"
Housing PBT +30% G/F Cover LCP + 30% G/F Color Black |
| Electrical Characteristics |
| a) Contact Current Rating: 0.3 Amp
b) Dielectric WithstandingVoltage:500V AC c) Insulation Resistance: 500MΩ/Min d) Contact Resistance: 35mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |

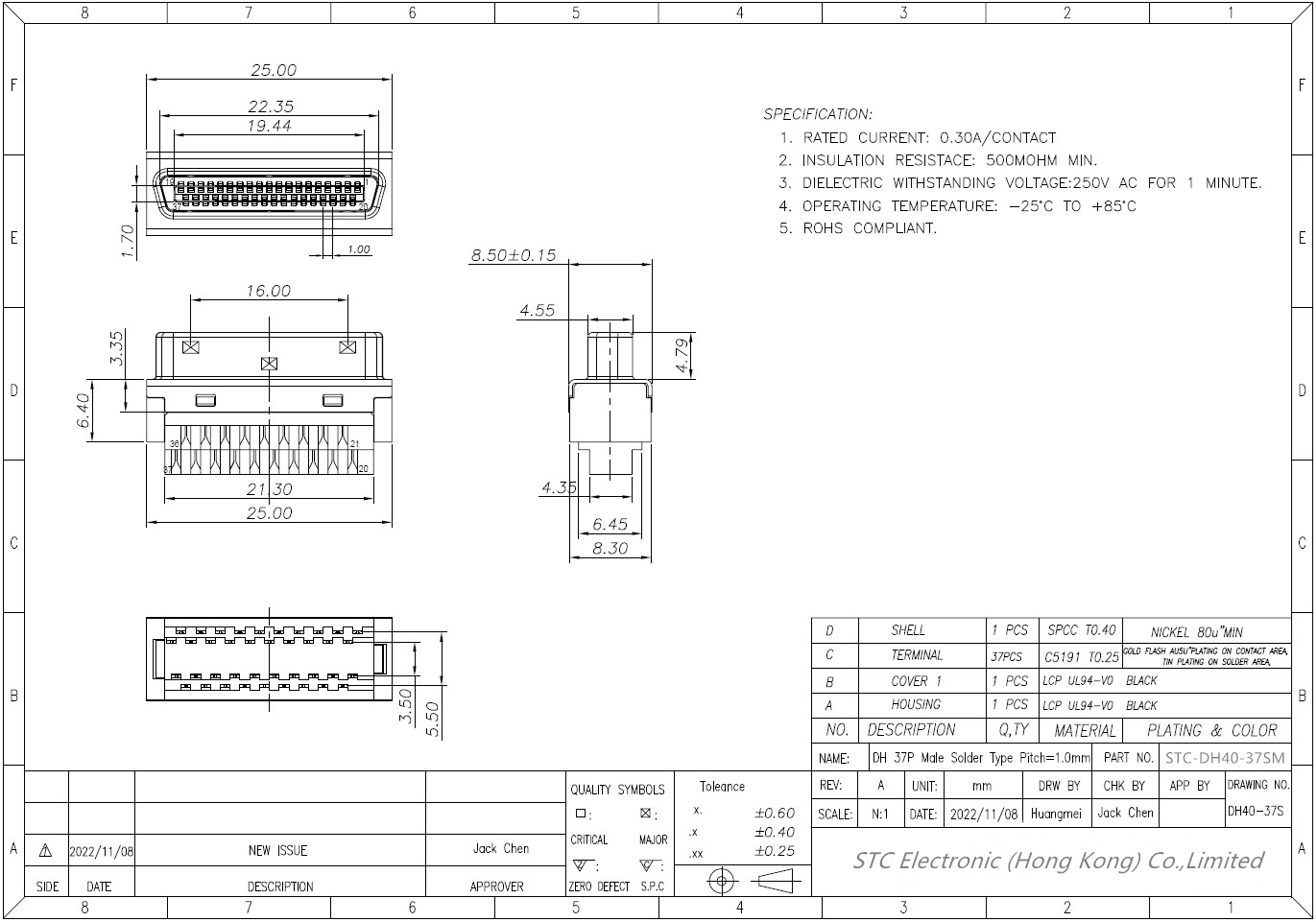

DH series DH40-37S male pitch=1.0mm 37 Pin male connector for cable.
|
| Overview |
DH 37 Way Cable Mount D-sub Connector Socket, 1mm Pitch
37 Position Plug Connector SCSI Free Hanging (In-Line) Solder
|
