Ordinary Discount Molex To Sata 15 Pin Power Cable Custom - USB 2.0 Cable Adapter Rear Panel Bracket 2 Port USB Connector Cable for Motherboard – STC-CABLE Detail:
| Technical Specifications |
| Warranty Information |
| Part number STC-E025
Warranty Lifetime |
| Hardware |
| Cable Jacket Type PVC - Polyvinyl Chloride
Cable Shield Type Aluminum-Mylar Foil with Braid Connector Plating Nickel Number of Conductors 5 |
| Performance |
| Type and Rate USB 2.0 - 480 Mbit/s |
| Connector(s) |
| Connector A 2 - IDC (2*5 pin, Motherboard Header) Female
Connector B 2 - USB Type-A (4 pin) USB 2.0 Female |
| Physical Characteristics |
| Cable Length 1 ft [0.3 m]
Color Beige Connector Style Straight to Straight Product Weight 1.7 oz [48 g] Wire Gauge 24/28 AWG |
| Packaging Information |
| Package Quantity 1Shipping (Package)
Weight 1.7 oz [48 g] |
| What's in the Box |
| Included in Package 1 - USB 2.0 Cable Adapter Rear Panel Bracket 2 Port USB Connector Cable for Motherboard |
| Overview |
|

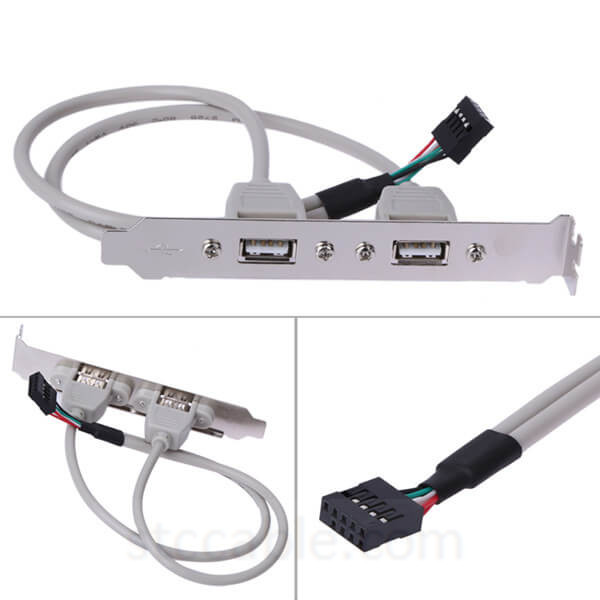

The USB 2.0 Cable Adapter Rear Panel Bracket 2 Port USB Connector Cable for Motherboard the USB pins from most AT style Pentium (and newer) motherboards to 2 standard USB A-Style ports. The plate can be mounted on the rear panel of a computer case, adding two USB A female ports for simple connection to USB peripheral devices.The Internal 2 Port USB Connector Cable for Motherboard is a cable to connect to motherboards to use 2 ports external USB ports. Installation is very simple. Just look on your motherboard for two 5-pin USB ports.Do you have a motherboard with extra USB 1.1 or USB 2.0 headers that you're not using?Now you can easily and inexpensively put them to use.You are bidding on brand new USB 2.0 Motherboard Cable Assembly .This high quality USB 2.0 compatible motherboard cable assembly is perfect for connecting additional USB 2.0 ports on motherboards with additional headers. Now you can use those extra USB 1.1 and USB 2.0 ports. Other USB motherboard cable assemblies are not compatible with USB 2.0 but this one is. Standard color coded connector is 2 X 5 and will work with 8, 9 and 10 pin out configurations. The cable assembly is set to standard default wire assignment configuration but, a straightened paper clip is all you need to loosen, move and reset the wires to match your specific pinout assignment.Adapter for computer cases to dual port USB connector on motherboard .Enable your motherboard USB port function. The Stccabe.com Advantage
|
Product detail pictures:
