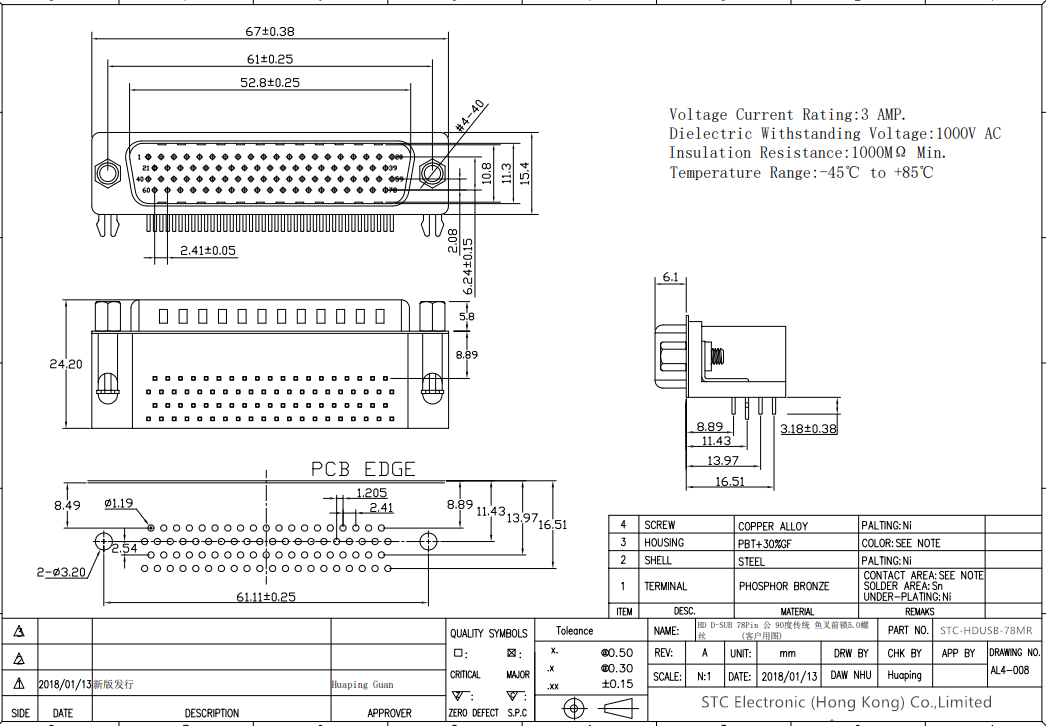

HD-SUB 78 Pin Male Connector Right Angle for PCB
Applications:
- HD-SUB DB 78Pin male Connector 90 degree for PCB.
- 4-row Right angle and Solder Type Connector.
- Designed To Be Mounted On Printed Circuit Boards.
- All 78 Pins And Two Mounting Tabs Extend Through The Circuit Board
- Dielectric Withstanding Voltage: 1000V AC.
- Insulation Resistance: 5000M /Min.
- Contact Resistance: 30m /Max.
- Operaion Temperature : -55°C ~ +105°C
Product Detail
Product Tags
| Technical Specifications |
| Warranty Information |
| Part number STC-HDUSB-78MR
Warranty 3-year |
| Hardware |
| Connector Type Male/4-Row/90 Degree/Solder
Connector Plating Gold |
| Performance |
| Power Delivery 50V/5A |
| Application |
| Industrial Equipment |
| Environmental standards |
| RoHS Compliant |
| Specification Detail |
| Terminal Copper alloy,Contact area plated 1u"
Shell SPCC,Plated Ni Housing PBT +30% G/F, Color: Black / Blue HOOD NA NUT Steel (If have) |
| Electrical Characteristics |
| a) Contact Current Rating: 5 Amp
b) Dielectric Withstanding Voltage: 1000V AC c) Insulation Resistance: 1000MΩ/Min d) Contact Resistance: 30mΩ/Max e) Operaion Temperature: -20℃～+85℃ |
| What's in the Box |
HD-SUB 78Pin male Connector HDB 78Pin for PCB 90 Degree Type with 4-40#nut D-sub 78pin Connector 4 rows for PCB.
|
| Overview |
|
HD-SUB HDB 78Pin male DIP PCB right angle Solder Connector Socket Adapter 4 Rows. Pcb Mount 90 degree Connector HDb-78 male, HD-Sub 78pin Connector In Assembly Of A Working Connector For Pc Board, The Connector Is Essential To Provide The Actual Connection Interface Between Two Devices. Such An Important Function Relies On Durable And Reliable Materials, Manufacturing, And Design. These Connectors Are Made Of The Highest Quality Materials To Ensure Maximum Operational Efficiency During High Intensity And Mission Critical Applications. Solder Type Connection Between The Cable And Connector Is Very Easy To Connect And Creates Permanent And Extremely Durable Connections From Cable To Connector.
The HDB78 pin right angle male Connectors Are Designed To Be Mounted On Printed Circuit Boards. All the Pins And Two Mounting Tabs Extend Through The Circuit Board, Providing A Convenient And Sturdy Connection. The right angle Connector Is A Space Efficient And Cable Strain Relieving Solution For Cabling Production. Made Of The Highest Quality Metals And Synthetic Materials, This Connector Performs Excellently In Mission Critical And Data Intensive Operations, Maintains Structural Integrity Under Physical Stress, And Gives Reliable Long-Lasting Versatility And Functionality To Your High Density Cables.
|
