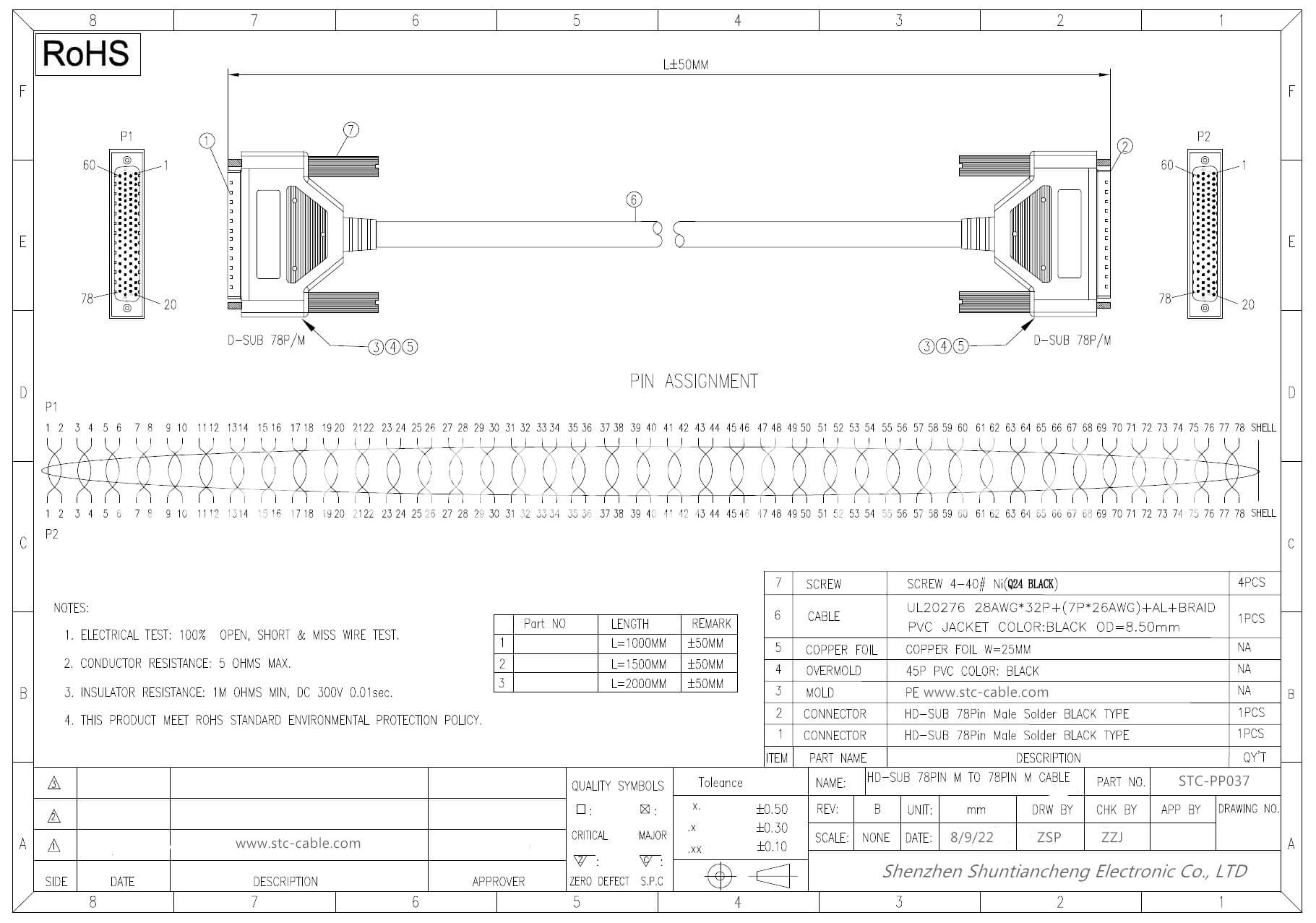

D-sub Connector DB78 male-to-male cable
1> DB78 male to male connectors; lengths range from 1m to 5m; color is light gray or Black
2> Gold-plated contacts provide reliable connections with repeated mating cycles.
3> Double shielded for protection against EMI/RFI.
4> Hex nuts on female connectors are removable to expose 4-40 thumb screws.
5> Wired straight through for extending serial devices/peripherals.
6> This cable is a straight-through patch cable that features 78-pin D Sub DB78 connectors.
7> Available in multiple cable lengths to meet your specific requirements.
8> Cables can be easily cut in half and custom-terminated for prototyping.
9> RoHS compliant
Featuring the world's largest inventory of d-sub cable assemblies, STC Cables on Demand is your premier D-subminiature cable destination. Our D-sub cables are offered in every major pin-count and connector configuration including DB9, DB15, HD15, DB25, HD26, DB37, HD44, DB50, HD62, and HD78. Deluxe, Premium, Panel Mount, & LSZH versions are available for commercial, industrial & mil/aero installations.
D-sub cable assemblies offer solid performance at economical prices. Double-shielded cable (copper braid plus aluminum mylar foil) provides maximum protection against data corrupting EMI/RFI. Molded backshells provide superior strain relief while 28 AWG conductors are wired straight through for ease of compatibility. Metal thumbscrews ensure fast and easy connections. Custom lengths and pinouts are available with modest minimum requirements.
General Description
These cables interconnect equipment that utilizes 78-pin DSUB connectors. These attractive cables feature 78-pin DSUB connectors on each end, over-molded ends with strain reliefs, and a shielded cable jacket. Two cable lengths (1m and 5m) are offered.
All cable ends have thumbscrews installed. The female cable ends come with jack sockets screwed onto the thumbscrews (see photos). These jack sockets allow a secure connection to a male cable end, as the thumbscrews on the male connector can thread into the jack sockets on the female end. Note that the jack sockets can be removed from the female connectors if desired, thus leaving standard thumbscrews.
Product Details
1> Available in Male-Female, Male-Male
2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)
3> 28 AWG conductors
4> Foil shielded
D-Sub Applications
In terms of applications, D-sub cables enjoy widespread use in a broad variety of domains including communications, data, consumers, industrial and instrumentation, automotive, and military. In communications, they can be used in switching and transmission apart from the Asymmetric Digital Subscriber Line (ADSL). For data applications, they’re used in desktops, laptops, storage systems, UPS, routers, servers, printers, and copiers. Consumer-driven applications include set-top boxes, energy meters, and consumer electronics.
In the industrial and instrumentation domain, robotics, medical instruments, POS and handheld terminals, surveillance cameras, and power supplies are some other usage areas. Still, other types of applications are avionics, automotive diagnostics, and military equipment.
|
