Warranty                                                                       3- Years

Connector B                                                                  1 - DB-HD44 (44 pin, D-Sub) Female

Color                                                                             Black/Gray

Connector Style                                                            Straight

Product Weight                                                             0.13kg

Wire Gauge                                                                  UL2464 28AWG*44C, OD=8.5mm

Weight                                                                          0.14kg

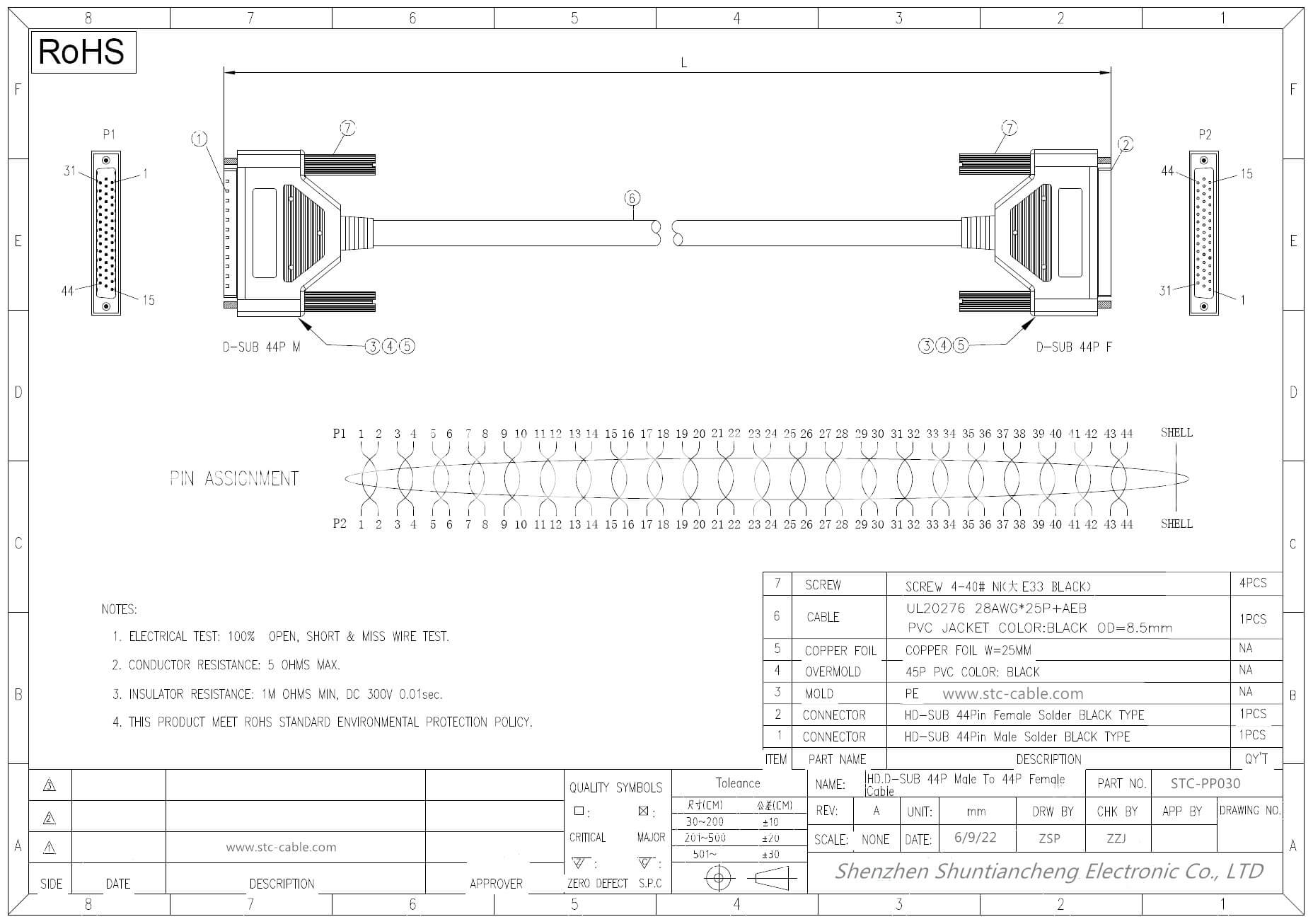

High-quality D-sub 44Pin cable DB 44Pin Male to Female Cables 1m d-sub 44pin cable for PMAC.

DB44HD High-Density Extension Cables

1> this is a standard DB44 Male to DB44 Female extension cable, 72 inches in length. Use this cable to extend a DB44 connector and locate your hardware where it is needed. The connectors are pinned one-to-one, using 26 AWG copper wire, making the cable compatible with any device or cable with standard DB44 connectors. Four 4/40 hex nuts are included for securing the connectors to a bulkhead, gender changer, or another cable. The cable is fully shielded against interference and the connectors are molded to provide strain relief. Dual metal thumbscrews secure the cable connections and prevent accidental disconnection.

2> Perfect for low-voltage signals & DCE/DTE RS232 serial communications.

3> 100% EMI/RFI shielded design combines aluminum mylar and copper tape.

4> Fully populated with Gold-plated contacts for superior signal continuity.

5> Rugged UL94V-0 flame-resistant PVC jacket and over mold for strain relief.

6> 300V voltage handling capacity at temperatures up to 80 degrees Celsius.

7> Available in multiple cable lengths to meet your specific requirements.

8> Cables can be easily cut in half and custom-terminated for prototyping.

9> RoHS compliant

44-pin (HD44) Copper Shielded High-Density Male/Female D-Sub Cables by STC provide exceptional performance in commercial, industrial, or enterprise applications where longevity and repeated disconnects are required. Our fully assembled Deluxe HD D-Sub Cable integrates copper tape + aluminum mylar shielded 24 AWG data-grade wire with pre-terminated HD44 (aka DB44HD) male and female d-sub connectors. Perfect for RS232 serial data, prototype, control, and low-voltage applications using the 44-pin HD44 interface. Note: Other cable lengths from this same part number series, if available, will also be displayed with their corresponding list prices. OEM-customized length, color, and label options are available by request.

General Description

These are extender cables for devices that use a DB-44HD (high-density) connector. All 44 pins are extended, and the wiring is straight-through (pin 1 to pin 1, 2 to 2, ...) including a foil shield around the cable and connecting the shells. The wire gauge is 28AWG. These cables are beige/grey. These cables have 3-row high-density connectors.

Product Details

1> Available in Male-Female, Male-Male

2> All pins wired 1:1 (e.g. pin 1 to pin 1, pin 2 to pin 2, etc.)

3> 28 AWG conductors

4> Foil shielded
