What is a slimline SATA?

What is a slimline SATA?

 Slimline SATA, also known as Slim SATA, is a smaller SATA connector designed for slim or compact form factors. Here are some key features:

1. Size and Form Factor:

Slimline SATA connectors are much smaller than the traditional 7-pin data and 15-pin power SATA connectors.

They are commonly used in notebook optical drives and other slim devices.

2. Combined Power and Data:

Slim SATA combines power and data in a single connector.

It has a seven-pin data configuration and a six-pin power configuration.

3. Applications:

Slim SATA is suitable for thin and handheld devices, including mobile phones and other compact electronics.

It can serve as a data storage device or a boot drive, depending on the application requirements.

In summary, Slim SATA offers the reliability of SATA in a thin design, making it ideal for use in space-constrained devices.


Can I use a Slimline SATA drive in my desktop computer?

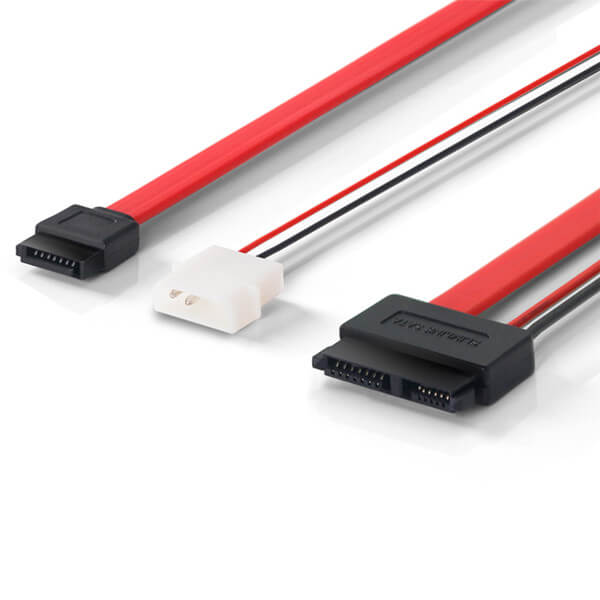

Certainly! You can use a Slimline SATA drive in your desktop computer, but you’ll need an adapter or converter. Here’s what you’ll need to do:

1. Adapter or Converter:

Slimline SATA drives have a different connector than the standard SATA drives used in desktop computers.

You’ll need an adapter or converter that allows you to connect the Slimline SATA drive to a standard SATA port on your motherboard.

2. Compatibility:

Check if your desktop motherboard has an available SATA port. Most desktop motherboards have standard SATA connectors, so you’ll need to convert the Slimline SATA to fit.

Make sure the adapter you choose supports both data and power connections.


Once you have the adapter, connect the Slimline SATA drive to it.

Then, connect the adapter to an available SATA port on your motherboard.

Finally, connect the power cable to the Slimline SATA drive (usually via the adapter).

Remember that Slimline SATA drives are commonly found in laptops and slim devices, so using them in a desktop setup requires this additional step.


Are there any performance differences between Slimline SATA and regular SATA drives?

Slimline SATA and regular SATA drives differ primarily in their form factor and power configuration. Here are the key points:

1. Form Factor:

Slimline SATA: Found in optical disk drives, especially in laptops. It has a smaller form factor.

Regular SATA: Used in standard desktop drives and larger devices.

2. Connector Pins:

Slimline SATA: Combines power and data in a single connector with 7 data pins and 6 power pins1.

Regular SATA: Has separate connectors for data (7 pins) and power (15 pins).

3. Performance:

In terms of performance, both Slimline SATA and regular SATA use the same communication protocol (SATA).

However, the power configuration may impact performance. Slimline SATA provides only a 5V rail, while regular SATA offers 12V, 5V, and 3.3V rails.

In summary, Slimline SATA is suitable for slim devices, while regular SATA is more common in desktop setups. The actual data transfer rates are similar, but power availability differs.
