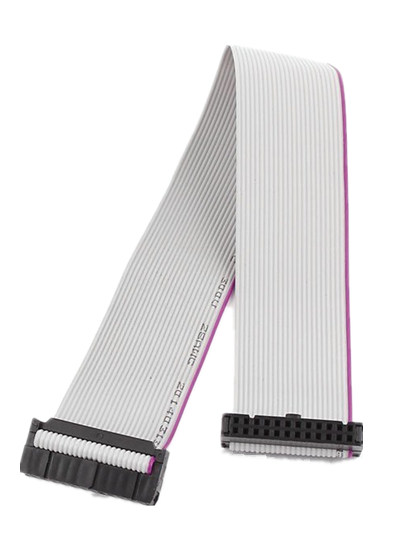

What Characteristics High-Quality Gray Ribbon Cable?

High-quality  gray cable is in accordance with the provisions of their industry norms  cable rules, line order, line color, line number, for moving parts and  activities within the area of data transmission, such as the computer  internal motherboard to connect hard drive, optical drive data lines, The motherboard connects the data lines of the display, as well as the data lines between the connected devices.

First, high-quality gray cable has a higher assembly reliability and quality. Cylinders  reduce the need for internal hardware, such as traditional electronic  packaging commonly used solder joints, trunks, backplane lines and  cables, so that the cable can provide a higher assembly reliability and  quality. Because  of the complexity of multiple systems composed of traditional internal  hardware in the assembly, prone to high component dislocation rate. "The  rigidity of the cable is low and small, and it is because the size of  the cable plate components is small, so the materials used are less."  With the advent of quality engineering, "said Ping.Wu, marketing manager  for EECX Electronic Products Division. , A thin, flexible system is designed to be assembled in only one way,  eliminating many of the human errors that are usually associated with  independent cabling.

Second, high-quality gray cable has excellent electrical properties, dielectric properties, heat resistance. "The lower dielectric constant allows for rapid transmission of  electrical signals; good thermal performance makes the components easy  to cool; higher glass conversion temperatures or melting points allow  the components to run at higher temperatures," said LT Electronic's  chief executive.

Third,  high-quality gray cable can be moved, bent, twisted and will not damage  the wire, you can follow different shapes and special package size. Its only limitation is volume space. Because  it can withstand millions of times of dynamic bending, the cable can be  well suited for continuous or regular movement of the internal system,  as part of the final product function. Rigid PCB solder joints on the role of mechanical stress, in the hundreds of times after the loop will fail. EECX product manager Jenny said: "require electrical / power to move,  and the shape factor / package size of some of the smaller products are  benefiting from the cable.

Fourth,  high-quality gray cable small size, light weight, the original design  of the cable board is used to replace the larger wiring harness wire. On  the current cutting-edge electronics assembly board, the cable is  usually the only solution to meet the miniaturization and movement  requirements. Cylinders  (sometimes referred to as flexible printed circuits) are etched copper  substrates or printed polymer thick film circuits on the substrate of  the polymer. For  thin and light, its compact and complex devices, its design solutions  include from single-sided conductive lines to complex multi-layer  three-dimensional assembly. The overall weight and volume of the cable is reduced by 70% compared to the conventional round wire harness method. The cable can also increase its strength by using a reinforcing material or liner to achieve additional mechanical stability.
