New product recommendation: M.2 to 5-port SATA 6G expansion card

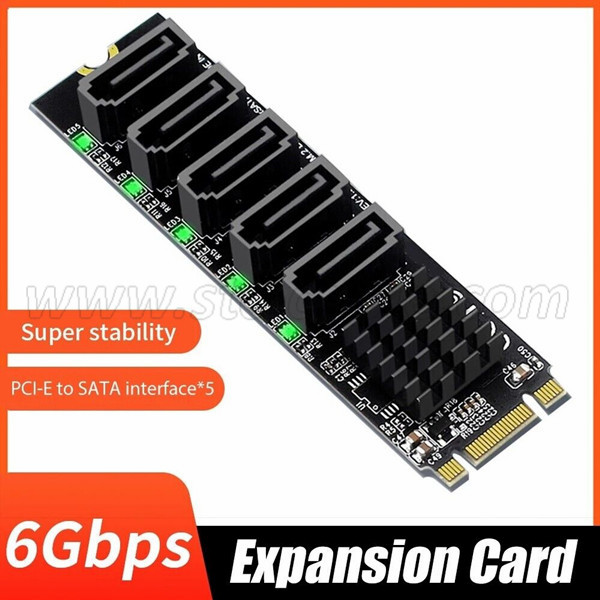

Adapter card manufacturer STC recently released a more special adapter card "M.2 (PCIe) to SATA 6G expansion card", which provides 5 SATA interfaces. What if you have multiple SATA interface solid-state drives but don’t have a motherboard to use it? Don't worry, STC provides an interesting solution "M.2 to SATA". The outside looks like an ordinary 2.5-inch solid-state drive, but in fact there are 5 SATA interfaces inside. Next, the editor will give you Let’s introduce this adapter card product in detail. Model: STC-EC0006

This expansion card supports the expansion of 5 SATA 6G interfaces from the M.2 slot of the host. It adopts a super PCI-E3.0 x2 bandwidth design, and the theoretical maximum bandwidth can reach 16Gbps. Using JMB585 chip solution, the performance is high-speed and stable. Supports 5 disk groups soft RAID, provides a wide range of applications for multimedia design and professional storage applications, and is a good solution for external multi-disk storage.

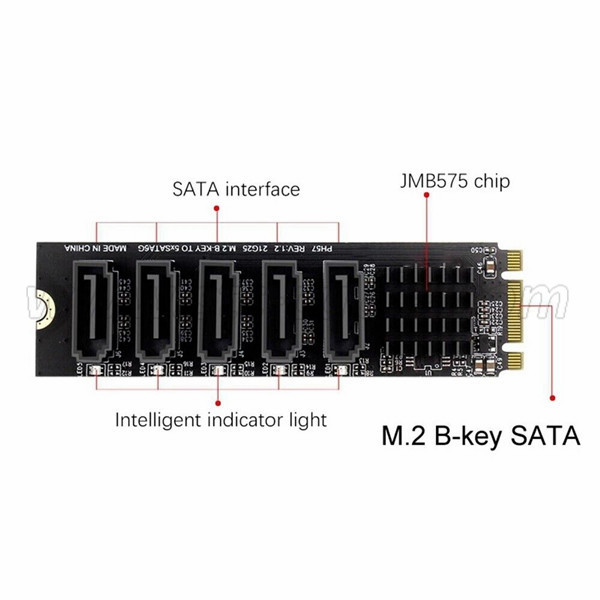

Equipped with 5 standard 7Pin SATA interfaces

Theoretically, it supports all SATA protocol hard drives and SSDs, and is a solution designed for the security market with high storage capacity requirements.

JMB585 chip

Using JMB585 chip solution, the performance is high-speed and stable. Not only can it meet high-end transmission standards, but it also has good compatibility and is suitable for use with various storage devices.

M.2 interface

Adopting PCI-E3.0 x2 bandwidth design, the theoretical maximum bandwidth can reach 16Gbps, 2-channel M.2 PCI Express 3.0 interface (B&M key), and supports the system's own soft RAID function.

Support multiple super operating systems

System requirements: Windows 7 (X86/X64), Windows 8/8.x / 10 (X86/X64) (Windows in-box driver), Linux-base OS.

Packing list:

1 x M.2(PCIe3.0) to SATA 6G adapter, 1 x manual, 5 x SATA cable

The hard disk adapter card launched by STC uses the M.2 interface of the PC host to convert it into 5 SATA interfaces. It is suitable for connecting SATA hard disks to hosts with insufficient SATA hard disk interfaces through data cables. The riser card has excellent design, workmanship and materials, excellent functions, performance and stability, and is highly practical. It is a tool and must-have for motherboard upgrades.
