USB 3.1 Type C USB-C to VGA HDMI Video Converter Adaptor

USB 3.1 Type C USB-C to VGA HDMI Video Converter Adaptor

Applications:

  • 【Dual Output】Audio and Video signals from a PC equipped with a USB Type-C terminal can be output simultaneously to a display, TV, projector etc. equipped with HDMI or VGA input terminal.
  • 【Support 4K Max】USB C to HDMI VGA Adapter Supports video resolution up to (4K * 2K) at 3840 * 2160P / 30Hz. when use HDMI alone, It support a large screen liquid crystal TV or display compatible with 4K max output.
  • 【No Driver】It is unnecessary to install the driver, it can be used easily just by inserting the cable. Also, external power supply is unnecessary, so you can use it in your favorite place.
  • 【Multi Display】You can extend the computer screen to a large screen display or projector, set up duplication (mirroring), work in a large screen workspace, or use it for presentation with a projector etc. in mirror mode. While the two output ports working at the same time, the highest resolution of HDMI output is 1080P only


Product Detail

Product Tags

Technical Specifications
Warranty Information
Part number                                                                   STC-KK023

Warranty                                                                         2-Years

Hardware
Ports                                                                               1

Output Signal                                                                  VGA

Converter Type                                                               Adapters

Performance
Maximum Digital Resolutions                                         (4K * 2K) at 3840 * 2160P or 1080p

Wide Screen Supported                                                  Yes

Power Source                                                                 USB C Powered

Connectors
Connector A                                                                    1 – USB-C (24 pin) Male Input

Connector B                                                                    1 -VGA (15 pin, High Density D-Sub) Female Output

Connector C                                                                    1 -HDMI Female Output

Physical Characteristics
Products Length                                                              100mm
Color                                                                                Silver
Enclosure Type                                                                Zinc AlloyProduct Weight                                                                0.9 oz [26 g]
Packaging Information
Package Quantity                                                            1Shipping (Package)

Weight                                                                             1.1 oz [30 g]

What’s in the Box
Included in Package                                                        1 – USB 3.1 Type C USB-C to VGA HDMI Video Converter Adaptor
Overview
Product Description
USB 3.1 Type C to HDMI VGA Adapter
USB Type-C Terminal equipped USB Type-C image conversion adapter that converts video signals of PC, tablet, etc. and can output to display · TV · projector etc. equipped with HDMI input terminal.
Support Models:
2018 MacBook / 2018 MacBook 12″/13″/15″/2016 MacBook Pro /2018 MacBook /2018 MacBook pro with Touch Bar/
Dell XPS12(9250)/Dell XPS13(9350)/Dell XPS15(9550)/Dell Precision5510
HP Spectre X2/HP Spectre X360/HP Elitebook Folio G1/HP Elite X2 1012 G1
Acer Switch Alpha 1/Acer Spin7/Acer Chromebook R13/Google Chromebook Pixel
Lenovo 900/Lenovo 910
Sumsang Galaxy S8/Sumsang Galaxy S8 Plus
HuaWei MateBook
 https://www.stc-cable.com/usb-3-1-type-c-usb-c-to-vga-hdmi-video-converter-adaptor.html

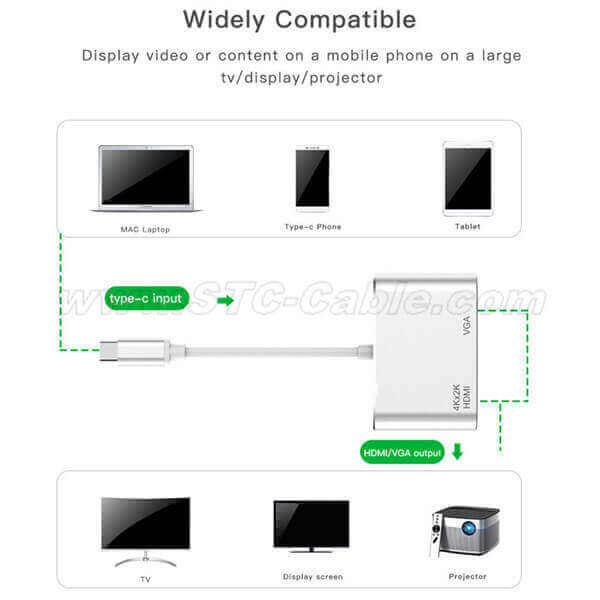

It is possible to simultaneously output the video signal from the personal computer equipped with the USB Type-C terminal to the display, TV, projector etc. equipped with HDMI or VGA input terminal.
This adapter can extend up to 2 screens. (Caution: When simultaneously outputting, both sides display 1080P resolution)
No driver installation required, just connect it!
Because the power supply is unnecessary and compact, it does not choose the place of use!
Ideal for office, conference, home theater entertainment!



 https://www.stc-cable.com/usb-3-1-type-c-usb-c-to-vga-hdmi-video-converter-adaptor.html



High Resolution 4K Resolution
The maximum HDMI output resolution is 3840 x 2160 @ 30 Hz
The VGA output resolution is up to 1920 x 1200 @ 30 Hz.
When displaying simultaneously, both sides display 1080P resolution



 https://www.stc-cable.com/usb-3-1-type-c-usb-c-to-vga-hdmi-video-converter-adaptor.html
Product Details



Chip Strong Performance :
Compatible Performance Enhancement
CPU CHIP High Speed Operation
Optimization  Avoid Quality Distortion
Avoid Magnetic Field Interference
 https://www.stc-cable.com/usb-3-1-type-c-usb-c-to-vga-hdmi-video-converter-adaptor.html
No driver installation required, just connect it.

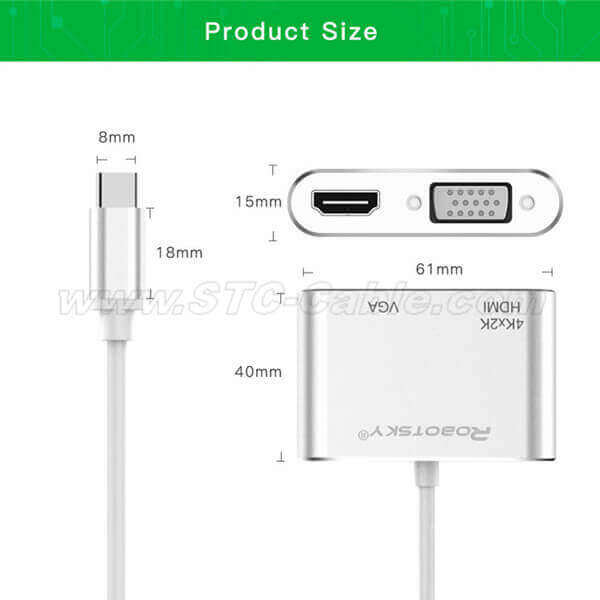

Product Specifications:
Product weight: 39 g
Product length: 136 mm
Connector: USB Type-C Male – HDMI (HDMI Type A) female VGA female
Maximum display resolution: HDMI terminal: 3840 × 2160 (30 Hz) VGA terminal: 1920 × 1200 @ 30 Hz
 Package:
1 * USB-C HDMI conversion adapter
